All-in-One Sash-Window Family

All of the built-in features in the All-in-One Revit Sash Window Family were designed from the ground up to take advantage of the advanced parametric capabilities of Revit. So you can create any kind of Sash Window with just one single Family that you can’t do with any other Revit Sash Window Family.

The Window System

The All-in-One Revit Sash Window Family is a new and unique way to create Revit Sash Window Families. The built in fully parametric Frame system lets you create any Sash Window you need for your Project. Due to the proportional Frame System, the Window can be used in various situations just by changing the Width and Height and the Frame System will adjust automatically. This is the first time you get all Windows with just a few clicks in your Revit Project that you need. To maintain your Revit Windows and keep them consistent in design it has never been easier then with this All-in-One Revit Sash Window Family.

Window setup

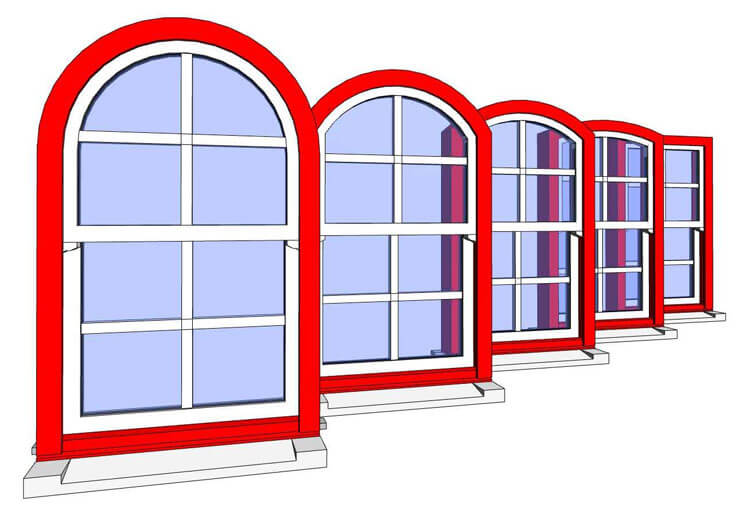

The biggest problem around Windows in a Revit Project is the almost infinite number of possible Window variations, as you might have already experienced with ordinary Revit Sash Window Families. The goal in developing this All-in-One Revit Sash Window Family was to give you one advanced parametric Revit Window Family that allows you to adjust to almost any possible Sash Window configuration.

The Wall Opening

The Wall opening doesn’t get that much attention with normal Revit Sash Window Families as you might have experienced. Not so with this All-in-One Revit Sash Window Family as it lets you have full control over the Wall Opening with many adjustable parameters to get the Opening, the Render wrapping, Reveal, etc. exactly how you require it for your specific Project.

Rough Opening

The correct Rough Opening is the basic functionality that you await from a good Revit Sash Window Family. If the Rough Opening is 100% correct, you can trust to use it for your construction as well as detail documentation drawings. The All-in-One Revit Sash Window Family gives you the possibility to setup specific Rough Distances between your Frame and the actual opening.

Render Offset

You can setup various Wrapping options within the System Wall Family, but this is just the half way to get the exact detail you really need. It is important to be able to control how much the render overlaps your frame separate for interior as well as exterior and the All-in-One Revit Sash Window Family lets you do this in a very convenient way.

Tapered Reveal

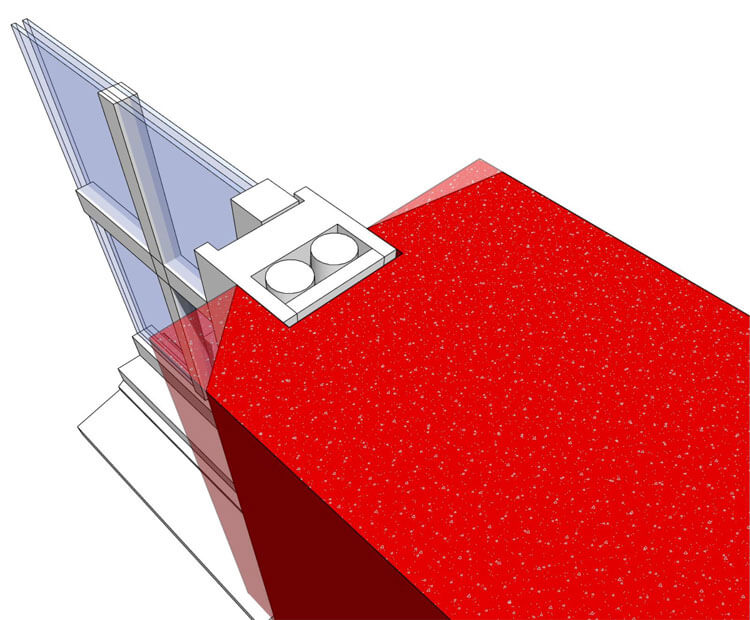

Many Projects are refurbishing existing buildings and therefore Windows have to be placed into existing walls that often have tapered reveals. The All-in-One Revit Sash Window Family helps you with its fully adjustable Reveals to exactly show each reveal as it is existing in the specific structure.

Cut joined Wall

The Wall System family gives you great possibilities to setup the exact Wall Layers you need. But sometimes it is necessary to add an additional Wall (e.g. Dry-Lining) and join it with the original Wall. The All-in-One Revit Sash Window Family supports those additionally joined walls with its Wall opening and it applies all your settings for Rough Distance, Tapered Reveals as well as Render Offset seamless to the original Wall as well as any additional joined Wall.

Niche / Window Seat

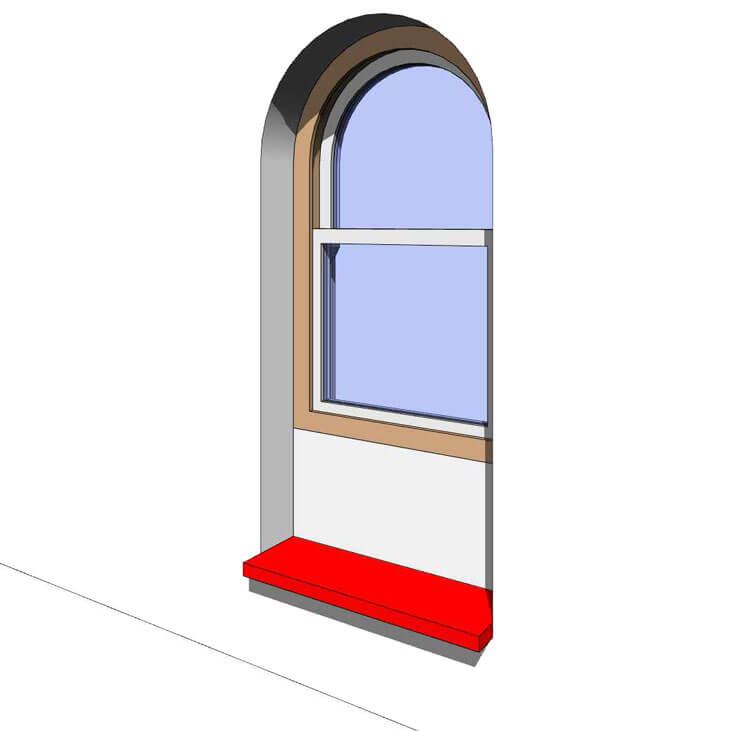

As this All-in-One Sash Window Revit Family is often used in historical Buildings it supports fully parametric Wall Niches as well as Window Seats.

The Sash Window Frame

The fully parametric Sash Window Frame System lets you setup any Sash Window from a straight head to a full arc head. The Sashes are also fully parametric and can be adjusted in their size and opening. Additionally each sash can have a setup of horizontal and vertical parametric Glazing Bars.

Sash Frames

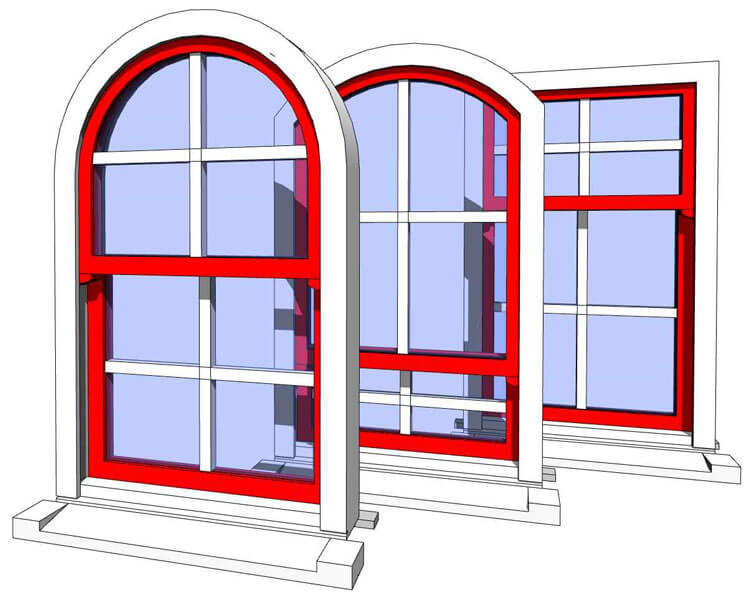

Standard Revit Sash Window Families give you a fix setup of Sash Elements. Not so with this All-in-One Revit Sash Window Family as it allows you to setup your Revit Sash Window exactly as you need it.

Glazing Bars

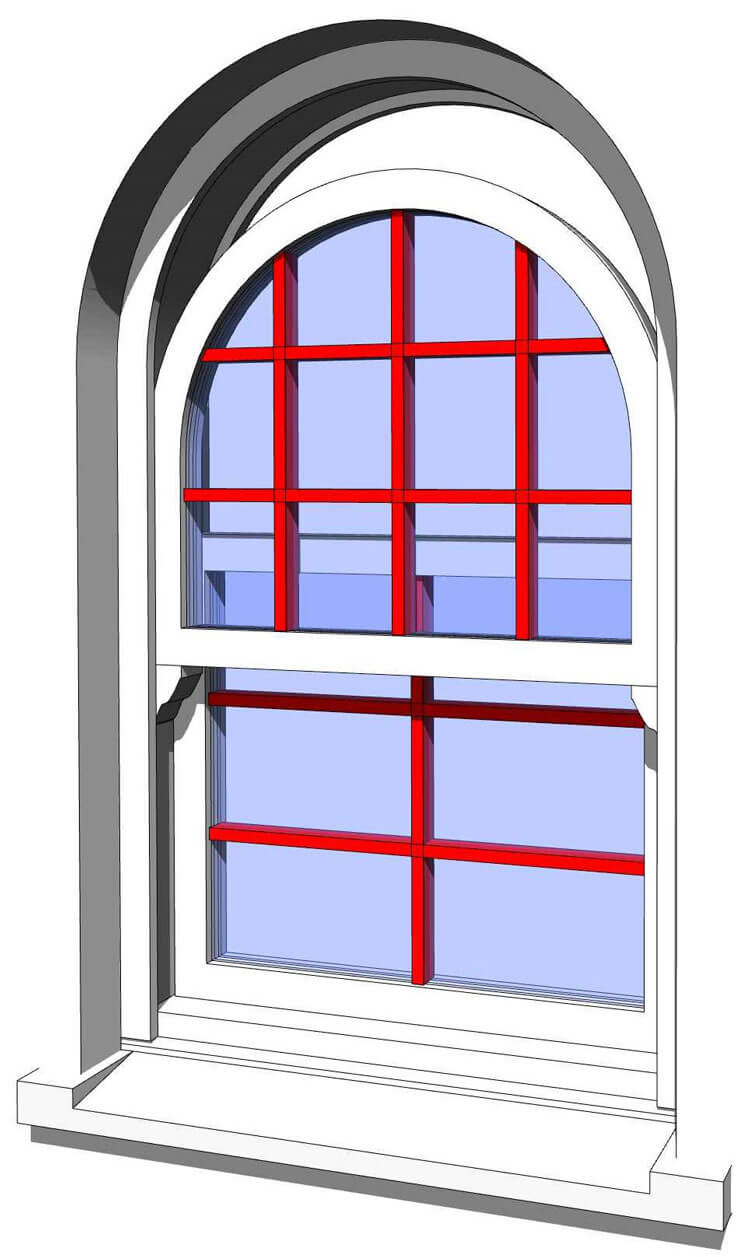

This All-in-One Revit Sash Window Family lets you setup as many horizontal and vertical parametric Glazing Bars as you require. This feature is available for each Sash Frame independently.

Sash Weights

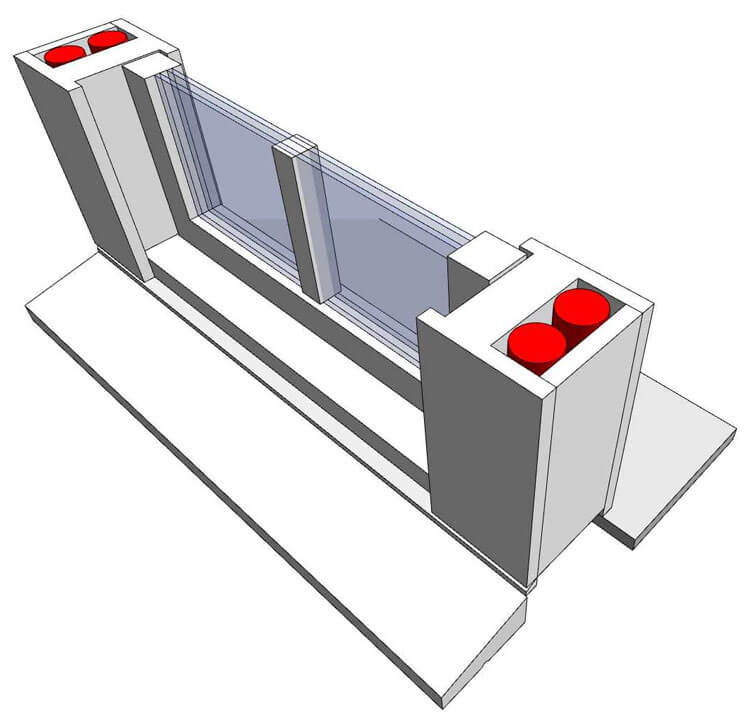

This All-in-One Revit Sash Window Family helps you to show the Sash Window in your Revit project as realistic as possible and therefore it lets you now add Sash Weights with just one click. The Frame automatically adjusts and can be further adjusted by you to achieve the correct detail solution.

Bay Windows

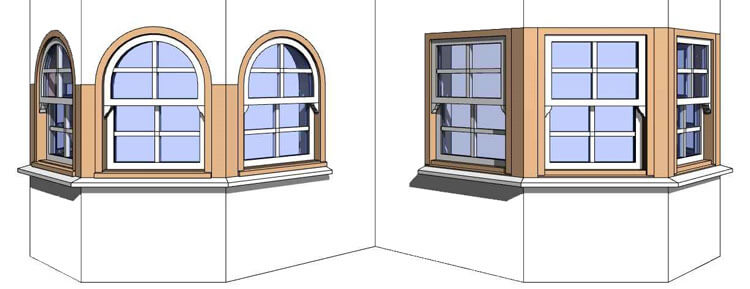

The All-in-One Revit Sash Window Family now gives you the full freedom to combine the All-in-One Sash Window to any Bay Sash Window Arrangement with its fully parametric and fully integrated mitered corner Post System.

Parametric Post

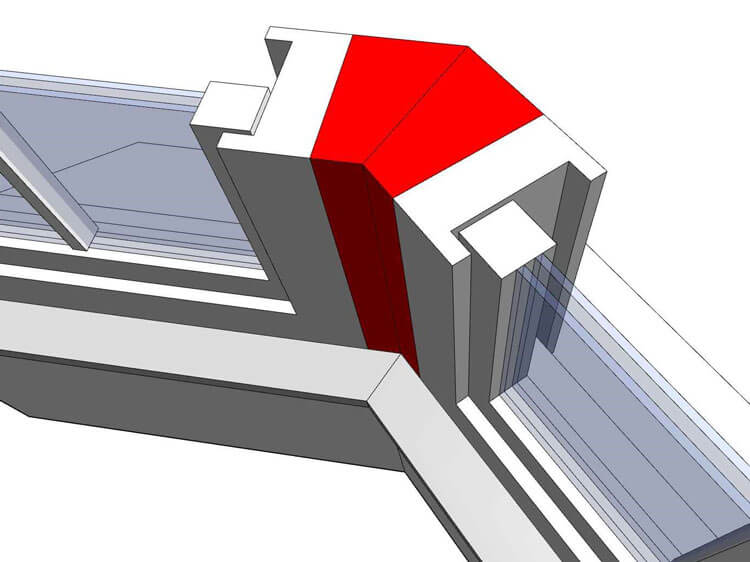

The fully parametric Post allows you to setup the connection Post you need to make any arrangement of Bay Sash Windows. You can control the Angle the Window miters, the Width, Depth as well as Material of the Post.

Window Accessories

Horn

The Horn can be controlled in its visibility as well as size.

Sill

To finally complete the realistic Design of this All-in-One Revit Window Family, you can setup an internal and external Sill to your project requirements.

Simple no-tricks pricing

If you're not satisfied, contact us within the first 14 days and we'll send you a full refund.

All-in-One Sash-Window Family

What's included

  • All-in-One Sash-Window Family .rfa file (metric/imperial) compatible with Revit & Revit LT 2020 - 2023

  • Sample Project .rvt (metric/imperial)

  • Manual .pdf

  • Free Email Support

  • Free Updates

Pay once, own it forever

$79 USD

...or save 33% with one of the following Bundles
